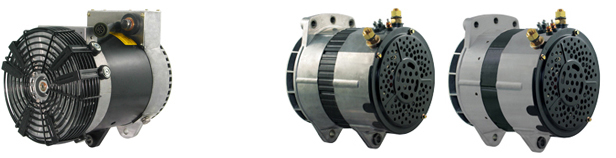

The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.

DelStar Search

*Alternator RPM

Search Results for:


Manufacturer/CompetitorC.E.Niehoff DelStar Upgrade
Part No.C612 100-20201
SeriesC600 200
DesignBrushless Brushless
MountJ 180 4" Long Hinge 4" J180 Long Hinge
Volts24 24
Amps @ 2000 RPM (Rotor) 175A 165A
Amps @ 6000 RPM (Rotor) 260A 260A
GroundNegative Negative
RegulatorAlt. Mounted Internal
Pulley- No
Product Specs. 100-20201"
Technical Bulletin

NOTES: Internal Voltage Regulator

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
