The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
C527



Manufacturer/CompetitorC.E.Niehoff DelStar Upgrade
Part No.C527 100-18113
SeriesC500 180
DesignBrushless Brushless
MountPad PAD 100mm
Volts12 12
Amps @ 2000 RPM (Rotor) 200A 245A
Amps @ 6000 RPM (Rotor) 360A 385A
GroundNegative Negative
RegulatorAlt. Mounted Internal - Adjustable
Pulley- No
Product Specs. 100-18113"
Technical Bulletin

NOTES: Internal Voltage Regulator

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

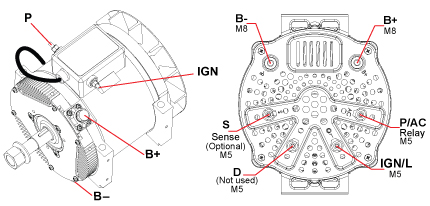

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
