The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
AVI160P2009



Manufacturer/CompetitorLeece-Neville DelStar UpgradeDelStar Upgrade
Part No.AVI160P2009 100-17113100-17119
SeriesAVI160P 171171
DesignBrush BrushlessBrushless
MountPad Pad 80mmPad 80mm
Volts12 1212
Amps @ 2000 RPM (Rotor) 140A 145A150A
Amps @ 6000 RPM (Rotor) 240A 250A285A
GroundNegative NegativeNegative
RegulatorInternal InternalInternal
Pulley- NoNo
Product Specs. 100-17113"100-17119"
Technical Bulletin

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

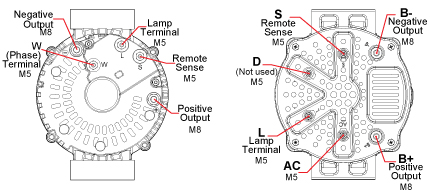

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
