The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
BLD2331GH



Manufacturer/CompetitorLeece-Neville DelStar UpgradeDelStar Upgrade
Part No.BLD2331GH 100-16105100-16106
SeriesBLD 161160
DesignBrushless BrushlessBrushless
MountJ 180 4" Long Hinge 4" J180 Short Hinge4" J180 Short Hinge
Volts12 1212
Amps @ 2000 RPM (Rotor) 107A 116A126A
Amps @ 6000 RPM (Rotor) 185A 200A240A
Ground Insulated InsulatedInsulated
RegulatorInternal InternalInternal
Pulley- No-
Product Specs. 100-16105"100-16106"
Technical Bulletin

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

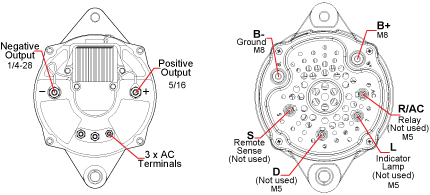

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
