The DelStar Series, heavy duty brushless alternators are an integral charging system of an innovative design. The compact, heavy duty construction provides efficiency and increased service life expected to match the longer maintenance intervals of today’s engines, while providing a performance level without parallel.


DelStar Search


*Alternator RPM

Search Results for:
61002316



Manufacturer/CompetitorDelco Remy DelStar Upgrade
Part No.61002316 100-18206
Series55SI 180
DesignBrushless Brushless
MountJ 180 4" Long Hinge 4" J180 Long Hinge
Volts24 24
Amps @ 2000 RPM (Rotor) 125A 134A
Amps @ 6000 RPM (Rotor) 275A 300A
GroundNegative Insulated
RegulatorInternal Internal
Pulley- No
Product Specs. 100-18206"
Technical Bulletin

The DelStar alternators are extremely efficient and high amperage output. Ensure alternator cables are adequate to handle the alternator output current. Voltage drop between Alternator B+ (Output Terminal) and Battery B+ (Positive Terminal) should not exceed 0.5 Volts drop at full alternator output.

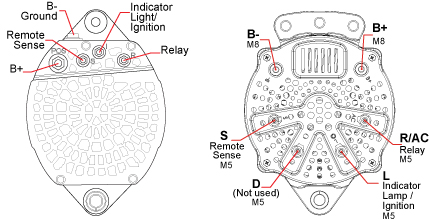

Connections:


NOTICE: Specifications and connections provided are believed to be correct at the time of publication.
Verify connections before replacing the unit.
